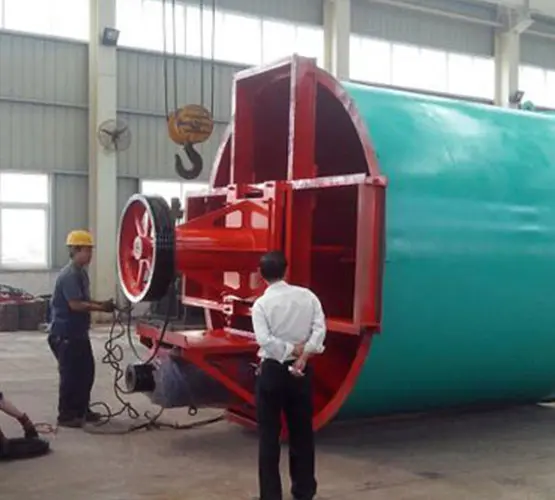

The high concentration agitating tank is suitable for agitating the ore pulp with higher concentration, such as agitation after concentrating, mixing agitation of sand pulp etc. With agitation concentration reaching 75%. There are two impellers with upper and lower opposite spirals. The agitating impellers have the features like strong wear resistance etc.
|
Specification (Dia.×H) (mm) |
Effective volume (m³) |
Medium concentration (%) |
Medium partical size (mm) |
Impeller |
Motor |
Capacity (㎡/h) |
External Dimension (W x H) (mm) |
Weight (kg) |
|||
|
Diameter (mm) |
Rotating speed (r/min) |
Model |
Power(kw) |
Rotating speed (r/min) |
|||||||
|
Ф1500×1500 |
2.25 |
<70 |
0.15~0.053 |
Ф500 |
280 |
Y200L2-6 |
18.5 |
975 |
40 |
1666×2810 |
2207 |
|
Ф2000×2100 |
5.8 |
<75 |
<3 |
Ф650 |
240 |
Y200L2-6 |
22 |
975 |
80~100 |
2410×2268 |
2976 |
|
Ф3000×3000 |
19.1 |
<70 |
0.15~0.053 |
Ф750 |
180 |
Y250M-8 |
30 |
730 |
240~320 |
3372×4348 |
4970 |
|
Ф3500×3500 |
30 |
<50 |
0.15~0.053 |
Ф850 |
225 |
Y280M-8 |
45 |
730 |
400~510 |
3922×4820 |
6550 |
