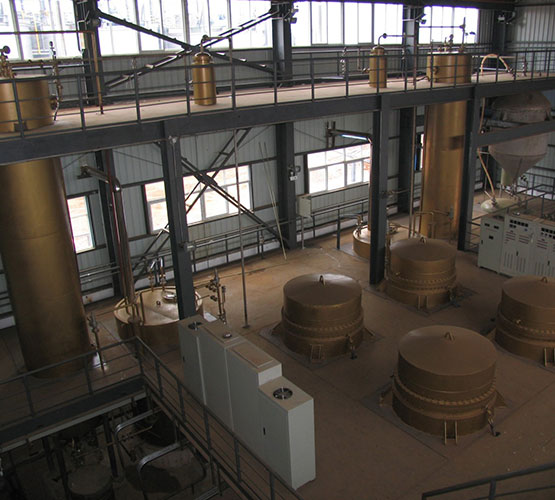

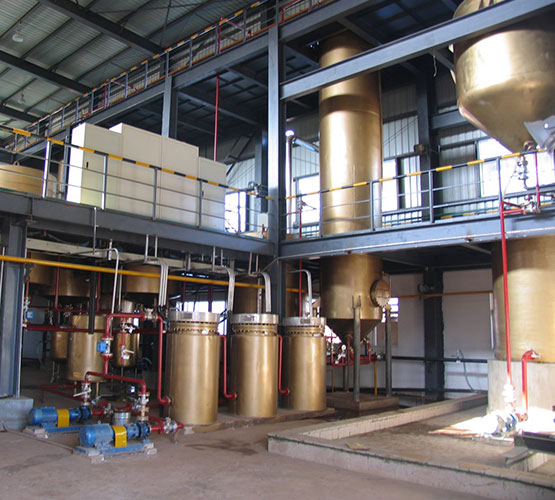

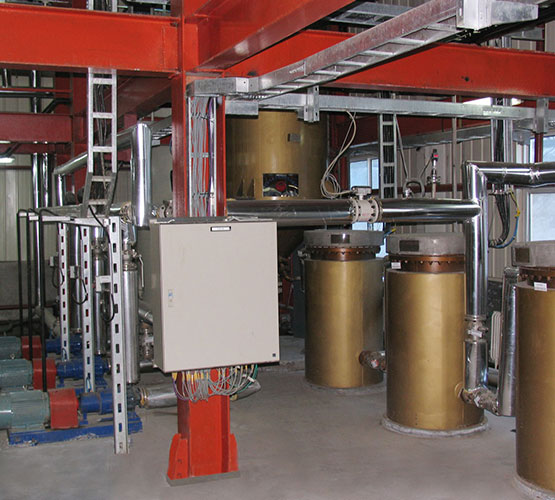

Rapid Desorption Electrowinning

Our gold desorption and electrowinning equipment features high temperature, high pressure, no-cyanide, auto-control of desorption with features of high efficiency, low consumption and rapid.

High-efficiency: when the grade of loaded carbon reaches 3000 g/t, the desorption rate can reach more than 96%, the barren carbon tenor with this equipment compared with that of normal desorption electrowinning equipment will reduce to its one/fourth.

Rapid: The temperature of desorption electrowinning can reach as high as 150℃ (generally 30~55℃ higher than in another kind system) and the working pressure of system can reach as high as 0.5Mpa(generally 0.2~0.5Mpa higher than in another kind system) so the desorption electrowinning is rapid with 12 hours typically (50%~60% time shortened).


Low consumption: the same temperature for desorption, no need of heat-exchanging, working speed is rapid, power consumption is 1/2~1/4 of normal system.

No cyanide: no need of adding NaCH into the desorption liquid; low cost; no pollution.

High grade gold mud no need of anti electrowinning, gold slurry extraction easy.

Auto-control: the level-control system, temp-control system and autocontrol system set specially.

Safety: with 3 procedures of safety production, the system itself intelligent, auto-limiting pressure and pressure releasing unit, safety valve.

Model

Original ore tenor (g/t)

Equipment of the system in detail

Instrument of the

System in detail

Operating parammeter

GKJD-200

2-8

JXZ desorption column

GLQ filter

DJC electrowinning tank

CQ circulating pump

DRQ electric heater

W air compressor

PYC desorption liquid tank

XL controlling box

GDF commutation box

Electric resistance remote

transmission diaphragm pressure gauge

Pressure indication adjusting meter

Diaphragm pressure gauge

Desorption liquid flow meter

Flow integrating instrument

Thermal temp meter

Temp sensor

Level meter

Temp indication adjusting meter

Temp: 150±2(℃)

PH: ≥13.5

Flow: 2.4(m³/h)

Current: 300±100(A)

Electrowinning voltage: 2-4(V)

Rated power: 75.6(kw)

Desorption tank pressure: 0.5-0.57(Mpa)

Electrowinning tank

pressure: 0.45-0.52(Mpa)

GKJD-300

2-8

GKJD-500

2-8

GKJD-700

2-8

GKJD-900

2-8

GKJD-1000

2-8

GKJD-1200

2-8

GKJD-1500

2-8
