PE Jaw Crusher

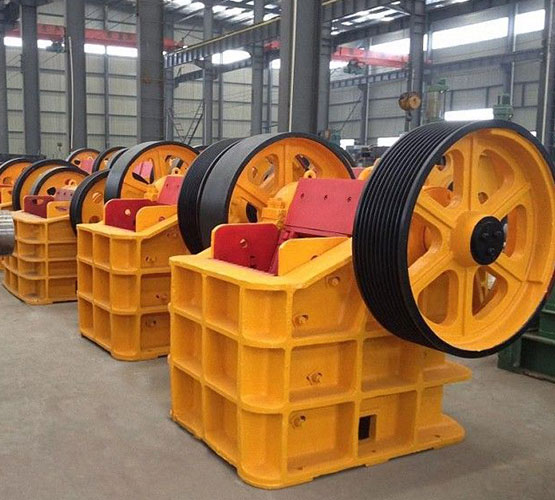

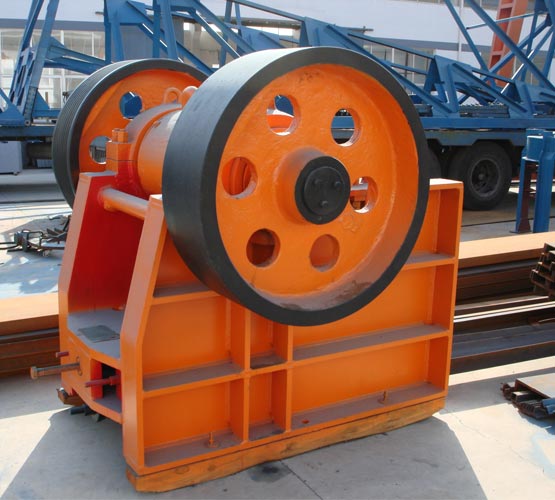

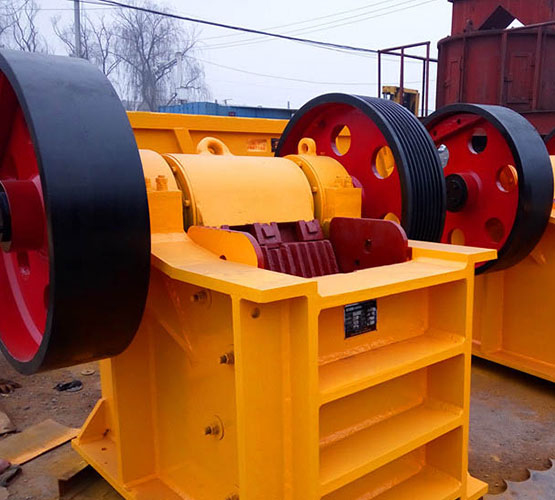

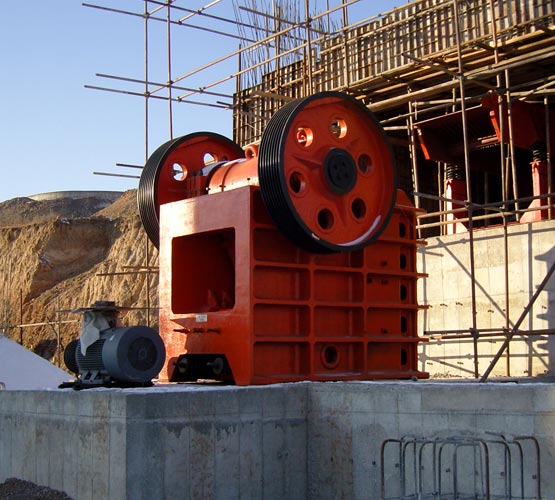

This type of crusher has a long history and belongs to traditional crushing equipment. Its motor drives the eccentric shaft to rotate via V-belt pulley and movable jaw to carry out a periodical complex pendular movement to generate crush capacity. There are two types: coarse crusher and fine crusher.

With the features like simple structure low price reliable operation and convenient adjustment of discharging opening it is very suitable for crushing the damp ore and the ore with a large content of clay with relatively coarse crushing grain size.

We have made the following optimized design for the models such as PE400-600, PE250-750, PE600-900 which has been recognized after practical application.

1. Deep chamber design high reduction ratio high crushing efficiency and fine crushing grain size.

2. Improved rotary speed of eccentric shaft; high productive capacity.


(1)Classic Inheritance, Simplicity & Reliability

Since the end of the 19th century, jaw crusher has been used in ore crushing and aggregate processing industries for more than a hundred years. Rhyther’s PE Jaw Crusher is developed based on century-old accumulations. So, performances of PE Jaw Crusher is totally reliable.

(2)Shorter Downtime &Longer Service Life - Super-Strong High-Manganese Steel Casting

Allowing for the operating conditions of jaw crushers are relatively severe and the quick-wear parts may be consumed rapidly, Rhyther thought deeply in selecting materials for core parts and adopted high-quality high-manganese steel casting which is most recognized in the world at present. This casting greatly extends the service life of core parts and effectively avoids too many shutdowns and maintenance tasks.

(3)"Power Failure" Safety Device Effectively Responds To Overload

When materials which cannot be crushed fall into the jaw crusher and a load of crushing machine exceeds the normal level, the elbow plate designed by Rhyther can realize automatic fracturing and then stop the jaw crusher, thus avoiding the damage of the entire machine and guaranteeing the production safety.

(4)Precise Processing, Craftsmanship Spirit

Even though the structure of PE Jaw Crusher is relatively simple, all processing procedures require precise processing, for example: only precise machining, heat treatment and flaw inspection can guarantee the eccentric shaft to possess sufficient strength and rigidity; only precise blanking can guarantee the weights and structures of flywheel and grooved wheel to enhance the operating balance of the jaw crusher. For this purpose, Rhyther formulates strict quality inspection procedures and uses advanced machining equipment to deliver perfect jaw crushers.

(5)Various Models To Satisfy More Demands

Through 30 years of development, Rhyther, according to market demands, has developed PE Jaw Crushers with different models, basically meeting all kinds of crushing demands for the production scale.

(6)Sufficient Supply Of Spare Parts, Worry-Free Operation

Rhyther, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the staff will be crushed in multiple ways. The angle of Jaw crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.

Model

Entrance size (mm)

Max particle size (mm)

Capacity (t/h)

Spindle speed (r/min)

Regulating limits of exit(mm)

Cooperate Motor

Dimensions(mm)(W*L*H)

Length

Width

Model

Power (kw)

PE150*250

250

150

125

1~3

285

10~40

Y132S-4

5.5

875*745*935

PE250*400

400

250

200

5~20

300

20~80

Y180L-6

15

1410*1310*1386

PE400*600

600

400

350

14~36

250

40~100

Y250M-6

30

1700*1732*1658

PE500*750

750

500

400

30~80

250

50~120

Y280M-6

55

1900*1876*1821

PE600*900

900

600

480

56~192

250

75~200

Y315S-6

75

2280*2245*2320

PE700*1000

1000

700

550

65~225

250

80~210

Y315S-6

75

2400*2280*2400

PE750*1060

1060

750

630

108-256

250

80~235

Y315M-6

90

2500*2370*2780

PE900*1200

1200

900

650

180~350

180

100~250

JR126-8

110

3200*2820*3260

PE1100*1400

1400

1100

900

200~450

200

120~260

Y2-315L2

132

3850*3050*4000

PE1200*1500

1500

1200

1020

300~550

200

150~300

Y2-315M2

160

4050*3150*4200

PE1500*1800

1800

1500

1200

380~720

190

220~550

Y2-315L1

220

5100*4700*4300

PE1600*2100

2100

1600

1250

500~880

180

280~650

Y2-400M

355

5600*5020*4950

PEX150*750

750

150

120

8~35

320

10~40

Y160L-4

15

1280*1610*1081

PEX150*1000

1000

150

140

12~35

330

15~45

Y-200L2

22

1400*1810*1250

PEX200*1000

1000

200

160

12~40

330

15~50

Y-200L2

22

1530*1810*1250

PEX200*1200

1200

200

160

20~70

300

20~60

Y-250M

37

1650*2150*1460

PEX250*750

750

250

210

15~45

300

15~50

Y225M-6

30

1695*1920*1648

PEX250*1000

1000

250

210

15~50

330

20~50

Y250M-6

30

1550*1990*1370

PEX250*1200

1200

250

210

20~70

320

20~60

Y280S-6

45

1670*2190*1430

PEX300*1300

1300

300

250

30~90

320

20~90

Y-280M2

55

1870*2400*1730

PEX300*1500

1500

300

250

45~120

300

20~90

Y-315S

75

1900*2660*1830
