Automatic Program-controlled Filter Press

Email ([email protected]), we will reply to you within 24 hours

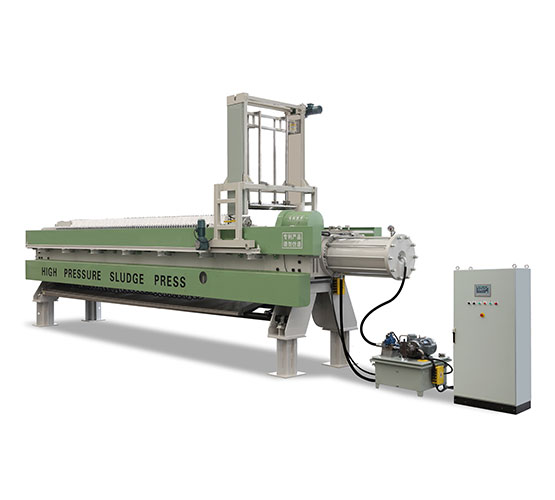

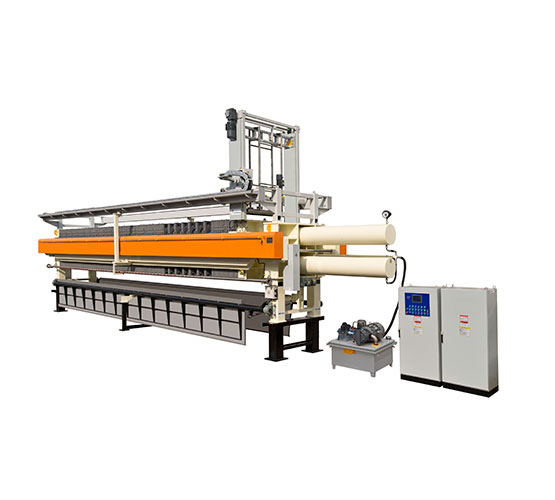

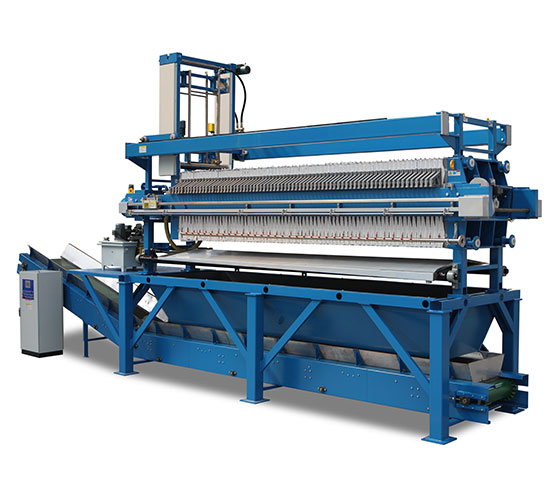

Automatic Program-controlled Filter Press

The filter press uses various filter plates to apply external pressure and compacts to form a closed filter chamber. Under the action of the feed pump, the filter medium (filter cloth) is used to achieve solid-liquid separation. This equipment is widely used in water treatment and dehydration fields in petroleum, chemical, medicine, pharmaceutical, food, starch, dye, and mining industries.

Inquiry

Our company's automatic program-controlled filter press is designed and manufactured with integrated electro-mechanical and hydraulic, and the pull plate uses a frequency conversion motor. The structure is reasonable, the operation is simple, the maintenance is convenient, and it is safe and reliable. This equipment can realize the automatic control of filter plate pressing, filtering, back blowing, filter cake washing, filter plate loosening, and discharging, also can be changed according to customer requirements and specific process conditions. Diaphragm filter presses can also achieve secondary compression by compressed air or water to further reduce the water content of the filter cake, which is used when the water content of the filter cake is strict and the filter cake needs to be dried. The secondary press of the membrane filter press minimizes the water content of the filter cake, thereby reducing energy consumption. This equipment adopts PLC control, a high degree of automation, and is equipped with communication interfaces, supports international universal communication protocols, and can be linked with the central control system to achieve remote control and monitoring.

1000 Series Automatic van-type Filter Press
Filtration area	Number of filter rooms	Specifications of filter plate	Filter cake thickness	Filter chamber volume	Filtration pressure	Motor power
㎡	NO.	mm	mm	m³	Mpa	KW
40	24	1000100060	30	0.58	≤0.6	4
50	30			0.73
60	36			1
80	48			1.16
100	60			1.46

1250 Series Automatic van-type Filter Press
Filtration area	Number of filter rooms	Specifications of filter plate	Filter cake thickness	Filter chamber volume	Filtration pressure	Motor power
㎡	NO.	mm	mm	m³	Mpa	KW
80	30	1250125065	30	1.19	≤0.6	4
100	38			1.51
125	48			1.9
150	57			2.26
200	76			3.02
250	95			3.77

1500 Series Automatic van-type Filter Press
Filtration area	Number of filter rooms	Specifications of filter plate	Filter cake thickness	Filter chamber volume	Filtration pressure	Motor power
㎡	NO.	mm	mm	m³	Mpa	KW
160	41	1500150070	35	2.81	≤0.6	5.5
200	51			3.5
240	61			4.18
250	63			4.32
340	86			5.9
400	102			7
450	115			7.89
500	127			8.71

2000 Series Automatic van-type Filter Press
Filtration area	Number of filter rooms	Specifications of filter plate	Filter cake thickness	Filter chamber volume	Filtration pressure	Motor power
㎡	NO.	mm	mm	m³	Mpa	KW
600	83	2000200080	40	11.98	≤1.0	15
650	90			13
700	97			14
750	104			15.01
800	111			16.02
850	118			17.04
900	125			18.05
950	132			19.06
1000	139			20.07
1060	147			21.22

1500 Series Automatic van-type Filter Press
Filtration area	Number of filter rooms	Specifications of filter plate	Filter cake thickness	Filter chamber volume	Filtration pressure	Motor power
㎡	NO.	mm	mm	m³	Mpa	KW
80	29	Diaphragm plate：1250125078 Box plate：1250125072	40	1.6	≤0.6	4
100	37			2
125	47			2.5
150	57			3
200	75			4.05
250	95			5.02

1500 Series Automatic van-type Filter Press
Filtration area	Number of filter rooms	Specifications of filter plate	Filter cake thickness	Filter chamber volume	Filtration pressure	Motor power
㎡	NO.	mm	mm	m³	Mpa	KW
160	41	Diaphragm plate：1500150085 Box plate：1500150080	45	3.2	≤0.6	5.5
200	51			4
240	61			4.8
250	63			5
340	85			6.82
400	101			8.07
450	115			9.02
500	127			9.96
