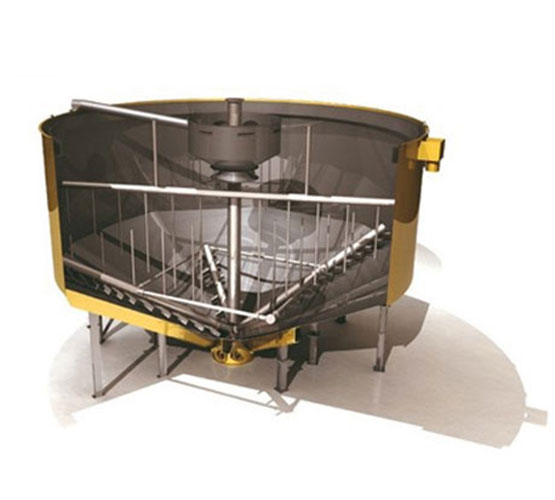

High-Efficiency Thickener

【Introduction】: New efficient thickening equipment independently developed by Xinhai.

【 Capacity 】: 5-1400t/d.

【Improvement】: This thickener is a patent product of Xinhai, patent No. 201010521662.5. After improvement, the capacity becomes larger, overflow with low turbidity and discharge with a high concentration.

1. Deaeration cell is provided to avoid solid particles attaching to bubbles and settling as parachute phenomena.

2. The mineral-feeding pipe is beneath the liquid level lest air be brought in while feeding.

3. The feeding casing is moved to a lower position and a receiving plate is equipped. Therefore, the fed slurry fall evenly and steadily, preventing rolling phenomena because of the residual pressure from feeding.

4. Inner overflow weir is equipped to have the pulp flow on the pre-designed route, avoiding short circuit enlarging the sedimental area.

5. The pattern of the overflow weir is made into indented shape, eliminating part suction phenomena induced by unleveled overflow weir.


Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block;

Oblique feeding instead of horizontal feeding solves the blockage problem;

A tranquil flow device reduces material flow rate so that the overflow becomes more uniform with lower turbidity.

The vertical axis rotates driven by the motor, and pulp by feeding device flows into the tank centre feed mixing barrel. Solid material in the bottom of the tank by the scraper moves out of centre; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.

Model

pond for concentration

Sediment area (㎡)

Processing

capacity (t/d)

Motor

Tank weight

(kg)

Weight

(kg)

diameter(mm)

Depth(mm)

Model

Power(kw)

NZSG-2.5

2500

1850

4.9

5~22.4

Y90L-6

1.1

1000-

2225

NZSG-3A

3000

1800

7

5~23.3

Y100L-6

1.5

1664

3168

NZSG-3

3600

1800

10.2

5~28.5

Y100L-6

1.5

2097

3640

NZSG-5

5000

2956

16

16~90

Y90L-4

1.5

5160

8031

NZSG-6

6000

2956

28.3

98

Y90L-4

1.5

5769

9200

NZSG-7

7000

3000

38.5

140

Y112M-6

2.2

8548

13361

NZSG-8

8000

3318

50.2

185

Y132S-6

3

12966

19289

NZSG-9

9000

3376

63.0

210

Y132S-6

3

15304

21960

NZSG-12

12000

3600

113

370

Y132S-6

3

25589

34823

NZSG-15

15000

4000

176

580

Y132M2-6

5.5

35800

58800

NZSG-18

18000

4400

255

960

YCT200-413

7.5

49694

65992

NZSG-20

20000

4400

315

1400

YCT200-413

7.5

59365

81238
