FL Spiral Classifier

Model: Submerged series and High Weir series

Spiral Diameter: 300-3000mm

Sink Length: 3000-14300mm

Spiral Classifier is a traditional type of classification equipment, mainly for metal mineral processing for the slurry density and particle size on the wet grade, mining operations could also be used in the flow desliming.

Log washer also called a spiral washer which is widely used in washing off silt and stains from manganese ore, iron ore and another low-grade mineral. Also it suitable for scrubbing material which contains tough insoluble clays, conglomerates or soft stone. This machine drive the spiral stirring shaft depends on speed reducer and rotate in different directions, and the minerals which enter the tank were washed by water and stir strongly by the blade. The sewage was overflowed at the end of tank, the cleaned minerals were lifted up along the blade and discharged at the beginning of the tank.


Features

1. Sand feedback end is equipped with an automatic lifting device the scooping device is removed from the ball mill.

2. Saving power for about 1-1.5kw to classify one ton one.

3. Avoiding the frequent overhaul of the scoop.

4. Damping the unbalanced impact of the pinion wheel and gull gear of ball mill.

Application

1. Iron Ore, Chromite Ore, Silica Sand, River Sand, Natural Sand, Bauxite etc.

2. Desliming and washing of Sands product, Silica Sand.

3. Dewatering of sand from the washing of Sand and Gravel.

4. Closed circuits with grinding and regrinding.

5. Dewatering of cyclone underflow.

6. Heavy media densifying.

7. Leached ore deliquoring.

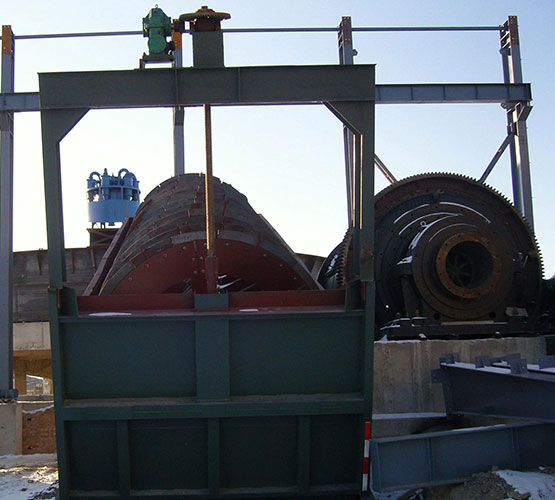

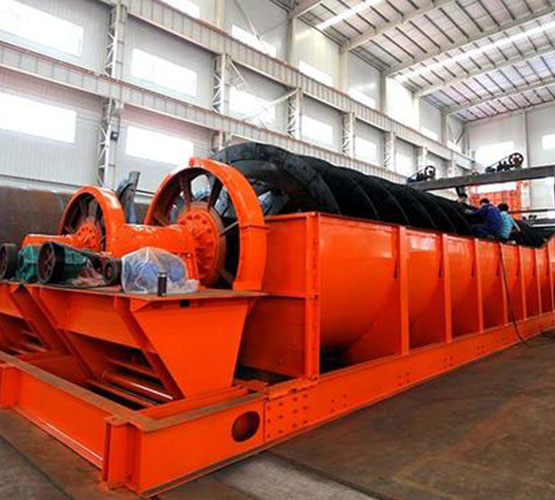

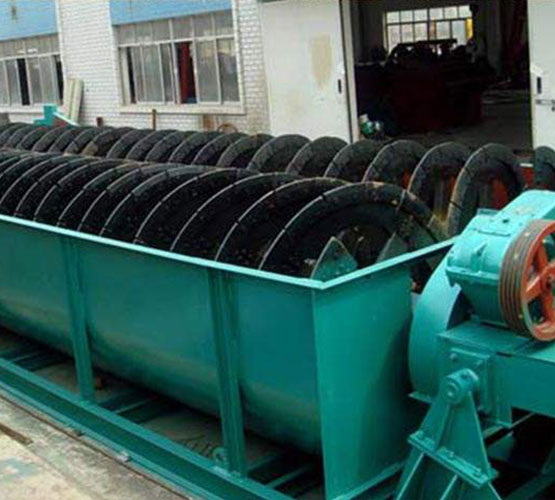

(1) A spiral classifier consists of an inclined tank, in which one or two shaft-mounted, steel-ribbon helixes, or spirals, slowly rotate along the length of and parallel to the tank bottom. The spirals do not contact the bottom or sides of the tank. The spiral shaft, through its rotation, creates mild agitation in the tank pool and also conveys the settled solids out of the tank. The spiral extends out beyond the surface of the tank pool, allowing the coarse solids to dewater.

(2) The Spiral Classifier is available with spiral diameters up to 120″. These classifiers are built in three models with 100%, 125% and 150% spiral submergence with straight side tanks or modified flared or full flared tanks. All sizes and models are available with single-, double- or triple-pitch spirals. The Spiral Classifier offers the greatest sand raking capacity of any classifier available.

(3) The tank is a heavy plate with a strong structural base. The extra heavy shaft has an improved submerged bearing. The greatest improvements, however, are found in the drive-unit which has been strengthened and improved over all other classifiers. A specially designed classifier reducer eliminates the “overhang” or cantilevered load normally found where the reducer shaft carries the pinion. The Classifier Reducer has an outboard bearing integral with the reducer base which provides positive alignment of the bevel gears.

(4) The gears themselves are greatly improved as they are cast from metal patterns which have cut teeth. The accuracy of the patterns and the quality gear castings result in a cast-tooth gear of cut-tooth quality. The gears mesh smoothly, have greatly increased capacity and are noticeably more quiet than other spiral classifiers.

(5) Spiral Classifiers are available in sizes up to 120″ diameter, three tank styles, single, double and triple pitch spirals, three degrees of spiral submergence —flexibility to provide a unit built for your job. Write for the detailed recommendation on the correct size and type of Spiral Classifier to do your job economically and profitably.

(1) With the aid of the principle that the solid particle size is different and the specific gravity is different, the settling velocity of solids in the slurry is different.

(2) The fine solid is discharged at the overflow weir,and the coarse particles sink to the bottom, driven by the spiral and discharge from the upper end of the classifier.

Type

Model

Specifi-cations

Spiral diameter

(mm)

Spiral rotating speed (r/min)

Water tank

Processing capacity (t/d)

Driving Motor

Lift Motor

Weight

(kg)

L

(mm)

W

(mm)

Overflo

-wing quantity

Retur

-ning quantity

Model

Power

(kw)

Model

Power

(kw)

High weir single screw

FLG-5

Ф500

500

10.5

4500

555

32

143~261

Y90L-6

1.1

Manual driven



1600

FLG-7

Ф750

750

6.6

5500

830

65

256~564

Y132S-6

3



2900

FLG-10

Ф1000

1000

66

6500

1112

85

473~1026

Y132M2-6

5.5



4400

FLG-12

Ф1200

1200

6

6500

1372

155

1170~1600

Y132M2-6

5.5

Y90L-4

1.5

8800

FLG-15

Ф1500

1500

2.5,4,6

8265

1664

235

1140~2740

Y160M-6

7.5

Y100L1-4

2.2

11680

FLG-20

Ф2000

2000

3.6,5.5

8400

2200

400

3890~5940

Y160L-6/4

11/15

Y100L2-4

3

20450

FLG-24

Ф2400

2400

3.6

9130

2600

580

6800

Y200L1-6

18.5

Y100L2-4

3

25650

FLG-30

Ф3000

3000

3.2

12500

3200

890

11650

Y200L2-6

22

Y113M-4

4

37000

High weir double screw

2FLG-12

Ф1200

1200

6

6500

2600

310

2340~3200

Y132M2-6

5.5×2

Y90L-4

1.5×2

15840

2FLG-15

Ф1500

1500

2.5,4,6

8250

3200

470

2280~5480

Y160M-6

7.5×2

Y100L-4

2.2×2

22100

2FLG-20

Ф2000

2000

3.6,5.5

8400

4280

800

7780~11880

Y160L-6/4

11×2

15×2

Y100L2-4

3×2

36400

2FLG-24

Ф2400

2400

3.67

9130

5100

1160

13600

Y200L1-6

2×18.5

Y100L2-4

3×2

45874

2FLG-30

Ф3000

300

3.2

12500

6300

1785

23300

Y200L2-6

2×22

Y112M-4

4×2

73030

Immerged single screw

FLC-10

Ф1000

1000

5

8400

1112

75

473~1026

Y132M2-6

5.5

Manual driven



6000



FLC-12

Ф1200

1200

5,6,7

8400

1372

120

1170~1630

Y160M-6

7.5

Y100L1-4

2.2

11020



FLC-15

Ф1500

1500

2.5,4,6

10500

1664

185

1830~2740

Y160M-6

7.5

Y100L1-4

2.2

15340



FLC-20

Ф2000

2000

3.6,5.5

12900

2200

320

3290~5940

Y160L-6/4

11/15

Y100L2-4

3

29060



FLC-24

Ф2400

2400

3.6

14130

2600

455

6800

Y180M-4

18.5

Y112M-4

4

37267



FLC-30

Ф3000

3000

3.2

14300

3200

705

11650

Y200L-4

30

Y112M-4

4

43500

immerged double screw

2FLC-12

Ф1200

1200

6

8400

2600

240

2340~3260

Y160M-6

7.5×2

Y90L-4

1.5×2

19610



2FLC-15

Ф1500

1500

2.5,4,6

10500

3200

370

2280~5480

Y160M-6

7.5×2

Y100L2-4

2.2×2

27450



2FLC-20

Ф2000

2000

3.6,5.5

12900

4280

640

7780~11880

Y160L-6/4

11×2

15×2

Y100L2-4

3×2

50000



2FLC-24

Ф2400

2400

3.6

14130

5100

910

13608

ZXY200L1-6

2×18.5

Y112M-4

4×2

65283



2FLC-30

Ф3000

3000

3.2

14300

6300

1410

23300

ZXY200L2-6

2×22

Y112M-4

4×2

84870
