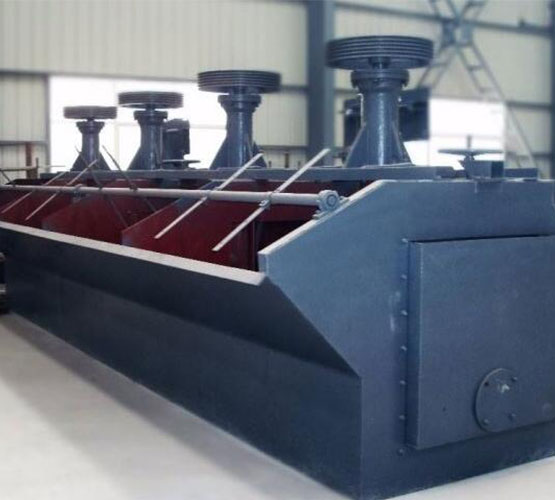

SF Flotation Machine

【Introduction】: SF flotation cell is a mechanical agitation type flotation equipment with self-slurry suction and self-air suction.

【Volume】: 0.37~20m3.

【Improvement】: Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank. Forward type tank, small dead end, fast foam movement.

This self-suction type mechanical agitation can imbibe the air and ore pulp spontaneously. The tank is forward not liable for precipitation into the tank but facilitating returning of the foams. Its double-blade impeller can agitate the coarse sand at the bottom adequately.

It has the following features: large air suction amount, low energy consumption horizontal arrangement no foam pump required low peripheral velocity of the impeller long service life of the impeller cover plate. Upper and lower double circulation of the ore pulp in a fixed way, which is conducive to the suspension of coarse grain minerals.


1. Large air suction volume, low power consumption;

2. The long service life of wear parts Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing;

3. The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of a coarse particle;

4. The auto-control device of slurry volume, convenient adjustment ;

5. Impeller with backward style upper and lower leaf, the upper blade generates upper circulation; the lower blade generates lower circulation.

6. Mechanical stirring, self- air suction, self-slurry suction;

7. SF flotation cell is composed flotation cell unit with JJF flotation cell as the suction tank of every operation.

SF flotation cell adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device. The slurry in tank takes upper and lower circulation according to the fixed flow mode, which is conducive to the suspension of coarse particle.

Model

Effective volume(m³)

Capacity

(m³/min)

Impeller diameter (mm)

Impeller speed (r/min)

Motor power

for agitation (kw)

Motor power

for scraper (kw)

Single tank

weight (kg)

SF-0.37

0.37

0.2~0.4

300

352~442

1.5

0.75

470

SF-0.7

0.7

0.3~1.0

350

400

3

1.1

970

SF-1.2

1.2

0.6~1.2

450

312

5.5

1.1

1400

SF-2.8

2.8

1.5~3.5

550

268

11

1.5

2242

SF-4

4

2.0~4

650

235

15

1.5

2600

SF-8

8

4.0~8

760

191

30

1.5

4292

SF-16

16

5.0~16

850

169~193

45

1.5

7415

SF-20

20

5.0~20

760

186

30×2

1.5

9823
