Upgraded Structure, Higher Efficiency

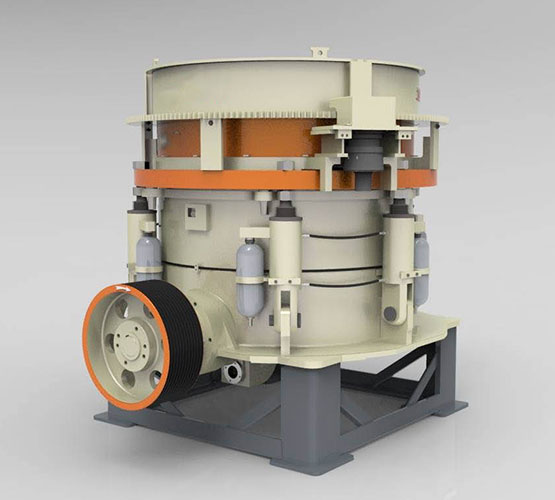

Cone Crusher further optimizes the transmission parts and lubrication and sealing structures. which boasts strong holding capacity, bigger installed power, higher efficiency and lower noises.
Multiple Cavity Types Meet Various Particle Size
Cone Crusher has several kinds of cavities suitable for different size requirements. Users can adjust product size and shape by changing spare parts like a concave, mantle.
PLC Integrated Control System Makes Operations Simpler
Cone Crusher adopts the advanced PLC electrical system, which can continuously detect the operation and give alarms, and display various operating parameters.
(1)PLC Integrated Control System Makes Operations Simpler

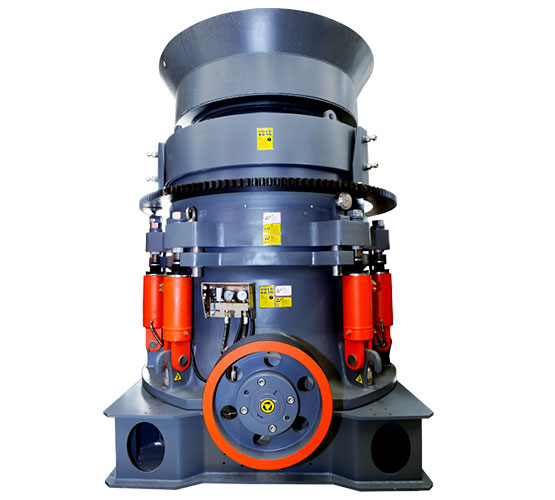

HPT Hydraulic Cone Crusher adopts the advanced PLC electrical system, which can continuously detect the crusher and give alarms, and display various operating parameters. The operator can learn the operating conditions of the crusher in real-time. This system not only simplifies the operations of the production line and saves the labour cost, but also reduces the operation risk, so that the safety performance of the production line is higher.
(2)Upgraded Structure, Higher Efficiency
Reserving unique structures like the fixed axis and the characteristic that eccentric sleeve rotates around the axis, HPT Hydraulic Cone Crusher further optimizes the transmission parts and lubrication and sealing structures. So, this crusher boasts strong holding capacity, bigger installed power, higher efficiency yet lower noises.
(3)The Principle Of Lamination Crushing Brings Better Discharging Size
HPT Hydraulic Cone Crusher adopts the principle of lamination crushing. Not only can the crushing efficiency improve, but also the abrasion of vulnerable parts reduces greatly. The finished products are cubic. Meanwhile, the content of qualified fine particles is high enough. Finished products can better serve as high-quality aggregates.
(4)Multiple Cavity Types Meet Various Production Needs
HPT Hydraulic Cone Crusher has several kinds of cavities suitable for medium-fine or fine crushing of materials. Users can freely make choices among different cavities by changing only a few spare parts like the lining plate, truly achieving that a crusher serves multiple purposes.
(5)Digitalized Processing, Higher Precision
There are tens of lines of numerical controlling machine tools. Operations such as steel plates’ cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.
(6)Sufficient Supply Of Spare Parts, Worry-Free Operation
Rhyther, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.
When Cone crusher is working, the motor drives the eccentric bush via bevel & pinion gear. Mantle core is forced to swing by the eccentric bush, which makes the mantle sometimes close to the concave, and sometimes far away from concave. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
|

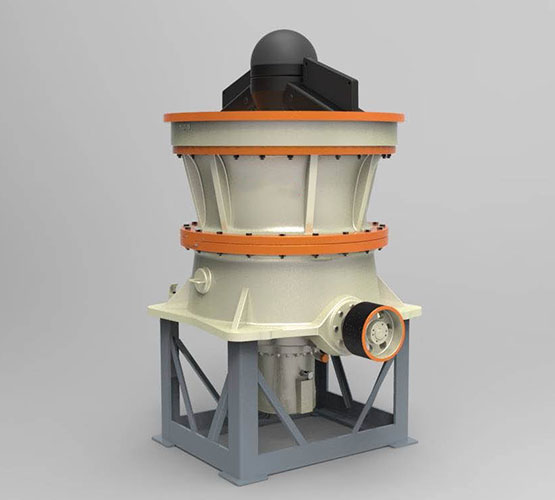

Model
|
Cavities
|
Feed opening (mm)
|
Minimum discharging size (mm)
|
Capacities (t/h)
|
Nominal installed power (kw)
|
Maximum installed power (kw)
|
Overall dimension (mm)
|
|
HP300
|
C1(Extra Coarse)
|
230
|
25
|
220-440
|
220
|
250
|
2725×2110×2871
|
|
C2(Coarse)
|
210
|
19
|
190-380
|
|
M(Medium)
|
150
|
16
|
175-320
|
|
F1(Fine)
|
105
|
13
|
145-280
|
|
F2(Extra Fine)
|
80
|
10
|
110-240
|
|
HP400
|
C1(Extra Coarse)
|
295
|
30
|
300-630
|
315
|
315
|
2775×2370×2295
|
|
C2(Coarse)
|
251
|
25
|
285-560
|
|
M(Medium)
|
196
|
20
|
250-490
|
|
F1(Fine)
|
110
|
13
|
180-345
|
|
F2(Extra Fine)
|
90
|
10
|
135-320
|
|
|
S2Medium Coarse
|
200
|
19
|
70-130
|
|
|
1550×1575×1965
|
|
H1Fine
|
135
|
10
|
45-115
|
|
H2Medium Fine
|
65
|
8
|
35-80
|
|
H3Extra Fine
|
35
|
4
|
27-60
|
|
GP160
|
S1Extra Coarse
|
360
|
25
|
120-345
|
132
|
160
|
1875×1920×3195
|
|
S2Medium Coarse
|
300
|
22
|
105-305
|
|
S3Coarse
|
235
|
19
|
90-275
|
|
H1Fine
|
185
|
13
|
66-210
|
1875×1920×2400
|
|
H2Medium Fine
|
90
|
10
|
65-165
|
|
H3Extra Fine
|
50
|
6
|
48-105
|
|
GP250
|
S1Extra Coarse
|
450
|
35
|
255-605
|
220
|
250
|
2100×2320×4096
|
|
S2Medium Coarse
|
400
|
29
|
215-515
|
|
S3Coarse
|
300
|
25
|
190-490
|
|
H1Fine
|
215
|
16
|
110-395
|
2100×2320×2780
|
|
H2Medium Fine
|
110
|
13
|
115-340
|
|
H3Extra Fine
|
70
|
8
|
90-255
|
|
GP315
|
S1Extra Coarse
|
560
|
41
|
335-1050
|
315
|
315
|
2380×2735×4630
|
|
S2Medium Coarse
|
500
|
38
|
305-895
|
|
H1Fine
|
275
|
16
|
170-665
|
2380×2735×3265
|
|
H2Medium Fine
|
135
|
16
|
190-505
|
|
H3Extra Fine
|
65
|
13
|
205-320
|
|

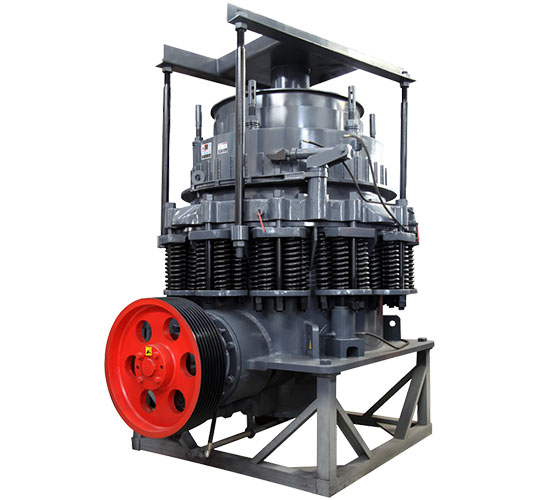

Model
|
Movable Cone Diametermm (inch)
|
Chamber
|
Opening Side
|
Closed Side
|
Discharging Opening (mm)
|
REV (r/min)
|
Power (kw)
|
Motor Model
|
Capacity (t/h)
|
Machine Size (mm)
|
|
Max.Feeding (mm)
|
|
CSB75
|
900 (3′)
|
medium
|
83
|
102
|
9-22
|
580
|
6-75
|
Y315S-6/75
|
45-91
|
2821×1880 ×2164
|
|
coarse
|
159
|
175
|
13-38
|
59-163
|
|
CSD75
|
914 (3′)
|
fine
|
13
|
41
|
3-13
|
580
|
6-75
|
Y315S-6/75
|
27-90
|
2821×1880 ×2410
|
|
medium
|
33
|
60
|
3-16
|
27-100
|
|
coarse
|
51
|
76
|
6-19
|
65-140
|
|
CSB160
|
1295 (4 1/4′)
|
fine
|
109
|
137
|
13-31
|
485
|
6-185
|
Y355M2-6/185
|
109-181
|
2800×2342 ×2668
|
|
medium
|
188
|
210
|
16-31
|
132-253
|
|
coarse
|
216
|
241
|
19-51
|
172-349
|
|
CSD160
|
1295 (4 1/4′)
|
fine
|
29
|
64
|
3-16
|
485
|
6-160
|
Y355M1-6/160
|
36-163
|
2800×2342 ×2668
|
|
medium
|
54
|
89
|
6-16
|
82-163
|
|
coarse
|
70
|
105
|
10-25
|
109-227
|
|
CSB240
|
1650 (5 1/2′)
|
fine
|
188
|
209
|
16-38
|
485
|
6-240
|
|
181-327
|
3911×2870 ×3771
|
|
medium
|
213
|
241
|
22-51
|
258-417
|
|
coarse
|
241
|
268
|
25-64
|
299-635
|
|
CSD240
|
1650 (5 1/2′)
|
fine
|
35
|
70
|
5-13
|
485
|
6-240
|
|
90-209
|
3917×2870 ×3771
|
|
medium
|
54
|
89
|
6-19
|
136-281
|
|
coarse
|
98
|
133
|
10-25
|
190-336
|
|
CSB400
|
2134 (7′)
|
fine
|
253
|
278
|
19-38
|
435
|
6-400
|
|
381-726
|
5200×4300 ×4700
|
|
medium
|
303
|
334
|
25-51
|
608-998
|
|
coarse
|
334
|
369
|
31-64
|
870-1400
|
|
CSD400
|
2134 (7′)
|
fine
|
51
|
105
|
5-16
|
453
|
6-400
|
|
190-408
|
5200×4300 ×4700
|
|
medium
|
95
|
133
|
10-19
|
354-508
|
