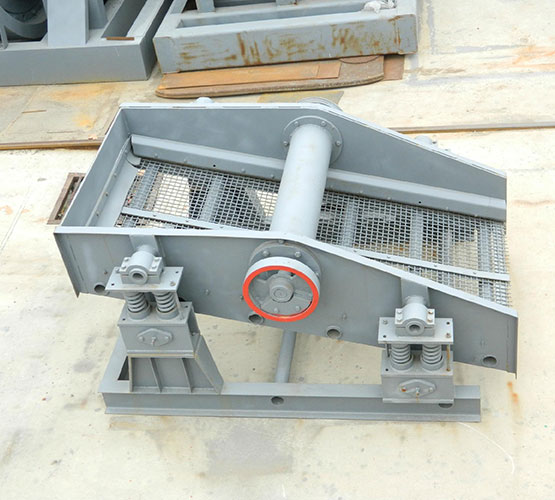

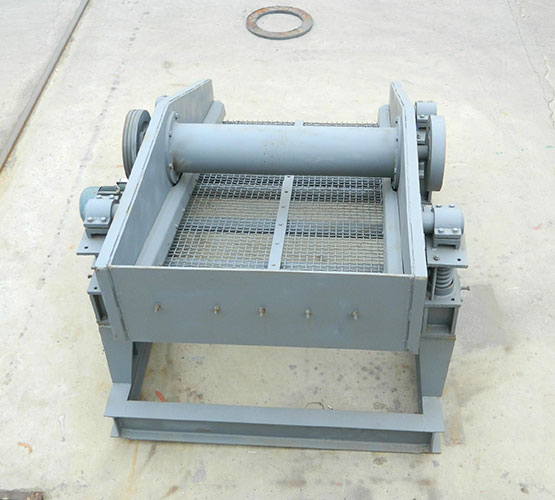

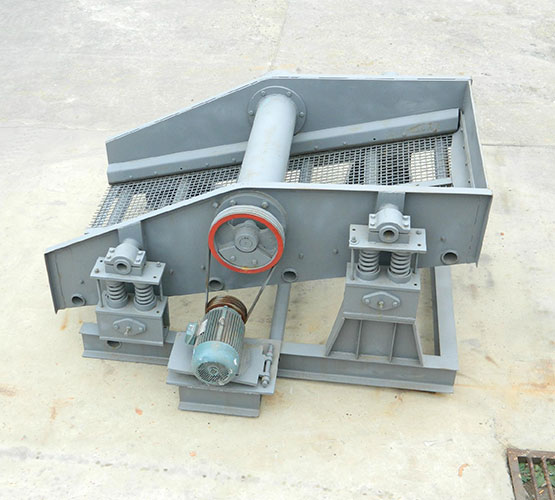

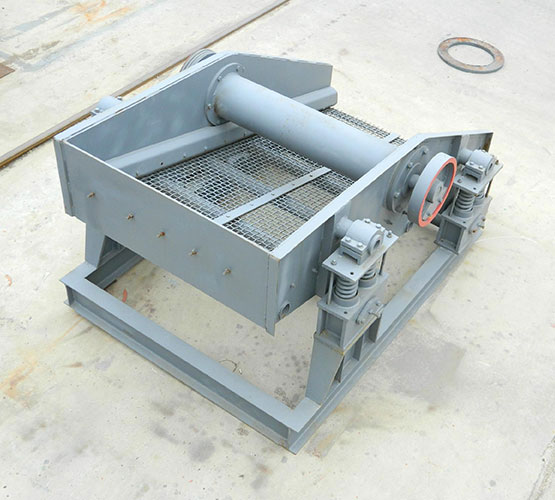

Self-Centering Vibrating Screen
With a circular movement track, SZZ series self-centring vibrating screen can classify the materials with fine and medium grain sizes. It is a type of traditional vibrating screen with most wide application in China.
Email (vip@rhythermining.com), we will reply to you within 24 hours
|
Model |
Specification (mm) |
Maximum feed particle size (mm) |
Capacity (t/h) |
Motor Model |
Motor power(kw) |
Weight(kg) |
|
SZZ0918 |
900*1800 |
40 |
20-25 |
Y100L1-4 |
2.2 |
420 |
|
SZZ20918 |
900*1800 |
40 |
40-50 |
Y100L1-4 |
2.2 |
570 |
|
SZZ1225 |
1250*2500 |
100 |
70-100 |
Y132S-4 |
5.5 |
1020 |
|
SZZ21225 |
1250*2500 |
100 |
70-100 |
Y132S-4 |
5.5 |
1320 |
|
SZZ1530 |
1500*3000 |
100 |
90-200 |
Y132M-4 |
7.5 |
1650 |
|
SZZ21530 |
1500*3000 |
100 |
90-200 |
Y132M-4 |
7.5 |
2870 |
|
SZZ21540 |
1500*4000 |
100 |
90-200 |
Y160L-4 |
15 |
4240 |
|
SZZ1836 |
1800*3600 |
150 |
100-300 |
Y180M-4 |
18.5 |
4500 |
|
SZZ21836 |
1800*3600 |
150 |
100-300 |
Y180M-4 |
18.5 |
5616 |
