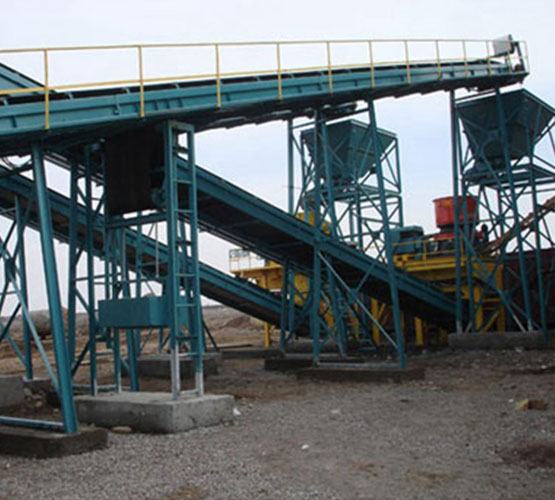

TD75 Belt Conveyor

TD75 rubber belt conveyor is a type of general-purpose belt conveyor applied in metallurgy coal and mining industries. It can be used for conveying various blocky and granular materials with bulk specific weight ranging 0.5~2.5t/ m3 as well as packaged materials. It can also be used for horizontally conveying chemical materials. Its ambient operating temperature is between -15°C and 40°C. In case of inclined upward conveyance, the angle of inclination shall be determined based on material properties.


Model

Width of rubber belt (mm)

Shape of rollers for holding

Groove shape

Belt Speed (m/s)

0.8

1

1.25

1.6

2

2.5

TD75

500

Freight volume

(m³/h)

78

97

122

156

191

232

TD75

650

131

164

206

264

323

391

TD75

800

222

278

348

445

546

691

TD75

1000

348

435

544

696

853

1033
